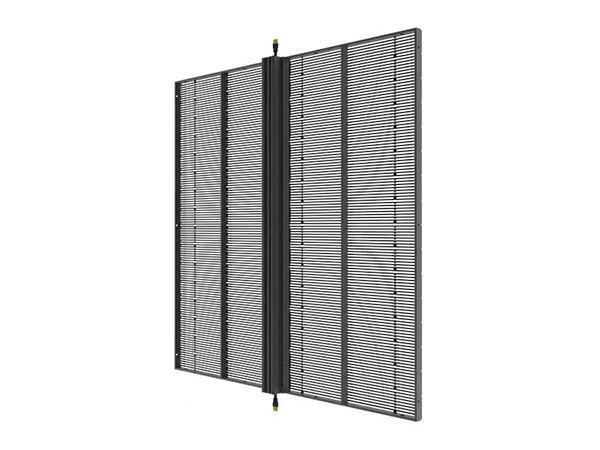

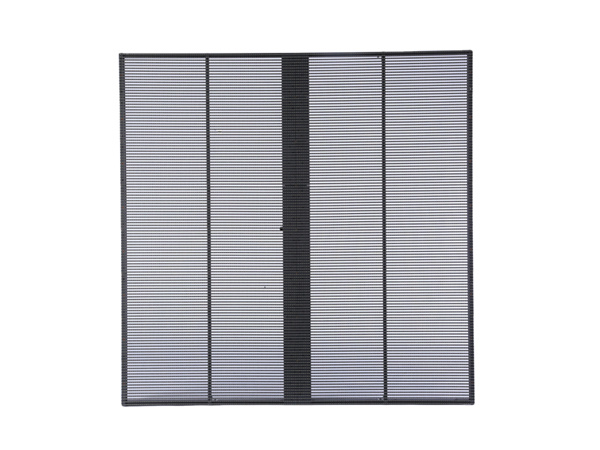

P2.6-5.2 transparent LED display
NEVISAL's LED transparent displays P2.6-5.2 are extremely beautiful, transparent, light, simple, economical and easy to use, with a wide range of customised models, short delivery times and good value for money, making them a favourite for glass walls.
KeyWord：
Classify：
Transparent LED display
P2.6-5.2 transparent LED display
transparent LED display , as the name implies, is characterized by "transparency". The objective performance of the traditional screen, such as lightproof and windproof, has caused many problems, such as the screen body is too heavy, the heat dissipation is poor, the structure is jumbled, the power consumption is high, the shape is abrupt, and so on, thus giving birth to the "transparent LED display screen". It has the characteristics of high permeability and ultra-light, and its implementation principle is the micro-innovation of the light bar screen, targeted improvements have been made to the chip manufacturing process, lamp bead packaging, and control system. With the hollow design structure, it reduces the obstruction of structural components to the line of sight, and improves the perspective effect to the maximum extent.
transparent LED display is applicable to the advertising application of glass curtain wall LED display screen used in medium or large area. The module size can be customized according to the glass curtain wall specification to achieve seamless splicing. As long as there is a glass curtain wall, this product can be applied. Such as banks, shopping malls, theatres, commercial streets, chain stores, hotels, municipal public buildings, landmark buildings, etc.
Installation method
Hoisting
Ultra-light and thin screen body, 4kg~6kg/box, can be directly attached to the original glass curtain wall keel structure for installation, without additional installation of steel structure, saving space and installation costs;
Lifting exploded view
The box adopts a special customized lifting beam, and the box is connected with a quick connection lock
System Diagram
Topology diagram of LED display system
Power Supply Diagram
Transparent LED Display Advantages

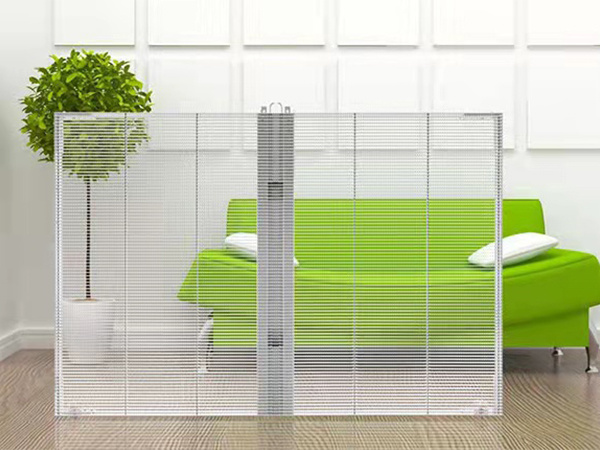

High Transparency/No Space/Light Weight
It has a very high perspective rate, with a penetration rate of 60% - 95%, ensuring that between floors, glass facades, windows, etc
The lighting requirements and perspective range of the lighting structure ensure the original lighting perspective function of the glass curtain wall.
The thickness of the screen is only 8cm, and the general weight of the display screen is only 6Kg/m2
No Steel Frame Structure/Unique Display Effect
No steel frame structure is required, which saves a lot of installation and maintenance costs. It is directly fixed on the glass curtain wall.
Because the display background is transparent, it can make the advertising image feel suspended on the glass curtain wall, and has good advertising effect and artistic effect.
Convenient Maintenance/Energy Saving And Environmental Protection
Fast indoor maintenance is fast and safe, saving manpower and material resources.
It does not need the traditional refrigeration system and air conditioner to dissipate heat, which is better than the ordinary LED display
Transparent LED Display
| Product Model | P2.6-5.2 | P2.6-5.6 | P3.91-7.81 | P5.2-10.4 | P10.4-10.4 |
| Pixel Pitch(mm) | 2.6mm-5.2mm | 2.6mm-5.6mm | 3.91mm-7.81mm | 5.2mm-10.4mm | 10.4mm-10.4mm |
| Pixel Density(dot/m2) | 73728 | 68352 | 32768 | 18432 | 9216 |
| LED Type | SMD1921/2121 | ||||
| Viewing angle | H≥140°Optional V≥140°Optional | ||||
| Module size | 500mm*125mm | ||||
| Modules resolution(dot*dot) | 192*24 | 192*22 | 128*16 | 96*12 | 48*12 |
| Module Qty per Cabinet | 2*4/2*8 | ||||
| Cabinet Material | Die-cast Aluminum/Profile Aluminum | ||||
| Cabinet Size（w*h） | 500mm*1000mm/1000mm*10000mm | ||||
| Cabinet Resolution(dot*dot) | 384*96 | 384*88 | 256*64 | 192*48 | 96*48 |
| 384*192 | 384*176 | 256*128 | 192*96 | 96*96 | |
| Cabinet Weight(kg) | 6.2kg | 6.2kg | 6.2kg | 9.6kg | 9.6kg |
| Brightness(cd/m2) | ≥2500 | ≥4500 | |||
| Refresh rate | ≥3840Hz | ||||
| Grayscale | 14bit | ||||
| Transparency | 65% | 75% | |||
| Protection Grade | IP41 | IP65 | |||
| Working Voltage | AC110V-230V | ||||
| Avg power consumption（W/m2） | 260 | 320 | |||
| Max power consumption（W/m2） | 800 | 850 | |||
| Temperature | Working : -25℃~60℃, Storage: -35℃~80℃ | ||||
| Control System | NOVASTAR/ Colorlight/ Linsn/Mooncell | ||||
| Lifetime | 100000 Hours | ||||
