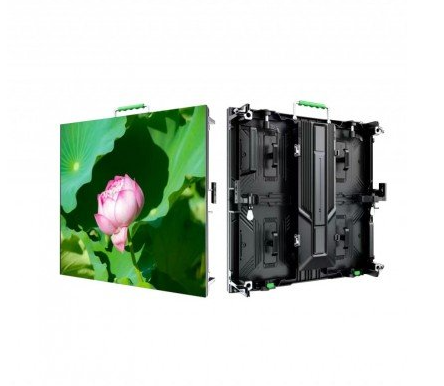

P1.9 outdoor rental LED display
Due to their lightness, thinness, high protection rating, not easily deformed and fast installation, P1.9 outdoor rental LED displays are very popular for stages, outdoor building facades, stadiums, and other large events.
KeyWord：
Classify：
Rental LED display
P1.9 outdoor rental LED display
P1.9 outdoor rental LED displays are installed outdoors, with relatively high brightness, still clearly visible in strong outdoor light, moderate density, good effect, and no splicing gaps. It is the mainstream equipment for outdoor dynamic advertising.
*Seamless assembling between modules
*High precision and reliability
*Light weight and thin
*Rich colors and clear picture
*Large viewing angle
*High brightness and contrast
*Smart and fast lock design
*IP65 waterproof high protective grade
Cabinet Size
In this series, we have 500*500mm cabinets and 500*1000mm cabinets, customers can choose by themselves, 500*500mm is a common choice for foreign customers, if you want a more cost-effective solution, you can choose 500*1000mm cabinets.
Quick Assembly
Supports hoisting, back frame installation, and the flatness of the module installation surface is required to be controlled within ±0.1mm, which can show high-definition picture quality and delicate colors, which can be comparable to LCD to a certain extent.
High Refresh Rate, Switching Without Flickering
The ultra-high refresh rate of 3840Hz, under the shooting of professional cameras and camcorders, has no smear and no flicker, ensuring high-definition and delicate display images, and meeting the needs of live broadcast lens switching without flicker.
IP65 Waterproof Rating
Due to the limitation of the installation environment and the influence of weather such as sun and rain, the LED outdoor rental display is generally installed in a waterproof die-casting cabinet or a waterproof standard cabinet. The outdoor led screen adopts a waterproof and dust-proof back shell, which is fixed by screws. The frame is treated with injection-molded waterproof glue, and the screen cabinet has a complete sealing performance, which is fully suitable for all kinds of bad weather.
Exquisite workmanship and systematic testing ensure the quality of products and escort customers.
The Cabinet Can Be Stacked
Using 500*500mm or 500*1000 cabinets, it can easily cope with various sizes of construction. The display effect is vivid, the viewing angle is wide, the display mode is various and the operation is convenient, the seamless stitching has high flatness, and the maintenance is convenient.
Outdoor LED Rental Display
| Product Model | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel Pitch(mm) | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Density(dot/m2) | 262144 | 147456 | 112896 | 65536 | 43264 |
| LED Type | SMD1415 | SMD1415 | SMD1415/SMD1921 | SMD1921 | SMD1921 |
| Viewing angle | H≥160°Optional V≥120°Optional | ||||
| Module size | 250mm*250mm | ||||
| Modules resolution | 128*128 | 96*96 | 84*84 | 64*64 | 52*52 |
| Module Qty per Cabinet | 2*2 / 2*4 | ||||
| Cabinet Material | Die-cast Aluminum | ||||
| Cabinet Size（w*h） | 500mm*500mm / 500mm*1000mm | ||||
| Cabinet Resolution(dot*dot) | 256*256 | 192*192 | 168*168 | 128*128 | 104*104 |
| 256*512 | 192*384 | 168*336 | 128*256 | 104*208 | |
| Cabinet Weight(kg) | 8/13kg | ||||
| Brightness(cd/m2) | 4000~6500cd/m2 | ||||
| Refresh rate(Hz) | ≥3840Hz | ||||
| Grayscale(bit) | 14bit | ||||
| Protection Grade | IP65 | ||||
| Working Voltage | AC220/110V | ||||
| Avg power consumption | 300W/m2 | ||||
| Max power consumption | 750W/m2 | ||||
| Temperature | Working : -25℃~60℃, Storage: -35℃~80℃ | ||||
| Control System | NOVASTAR/ Colorlight/ Linsn/Mooncell | ||||
| Lifetime | 100000 Hours | ||||
